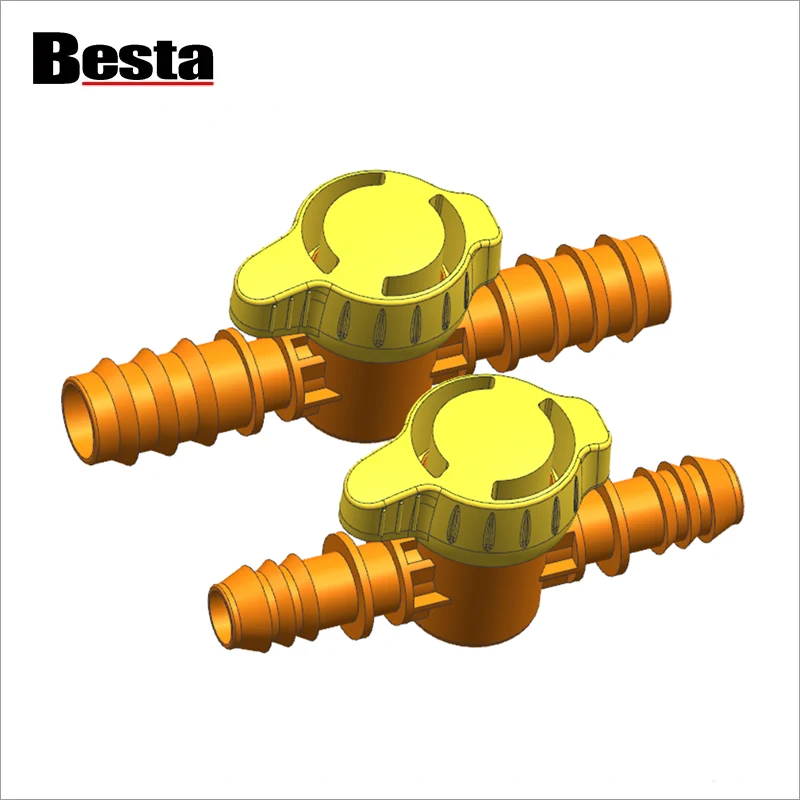

PP/POM Mini Valve Mold
  • PP/POM Mini Valve MoldPP/POM Mini Valve Mold

PP/POM Mini Valve Mold

Irrigation mini valve has many different types, this type without sealing ring, it's the most popular type in the market at present, it's new design, price is cheaper, and very good quality, no any leakage, there has two different materials in the market, PP and POM, both are ok. About mini valve mold, we use standard mold base, cavity with 718H or H13 steel, mini valve body mold with 3plates design, hot or cold runner, normal 4cavity, the core use beryllium bronze is better, HRC38, better than water cooling, the mini valve handle mold also use standard mold base, normal with 8cavity, subgate, cold runner is ok. We can design one size just one body valve mold, use changable inserts to change different type, it's easy to change the cavity at the injection machine, by this way can help customer produce many different type in one mold, can save mold cost, also can use same handle for different size.As the professional manufacture, we would like to provide you high quality PP/POM Mini Valve Mold. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

About PP/POM Mini Valve Mold

Product description

new design mini valve for micro irrigation, without o-ring

Changable size

use changalbe insert to produce different size in same valve body mold

Brand positon

on the surface of mini valve handle

Mold base

LKM, HASCO, DME or upon customer's request, stantandard mould base

Cavity number

mini valve body with 4 or 8cavities, handle with 8 cavities

Cavity and core steel

718H, P20H, H13, 2316 etc.

Design software

UG, Auto CAD etc.

Plastic material

PP or POM

Mold gate

valve handle with sub gate, valve body with pin point gate

Mold runner

Cold runner or hot runner

Cooling system

Water cooling or Beryllium bronze cooling

Heat treatment

Quenching, nitriding

Mold surface

EDM, texture, high gloss polishing

Cavity hardness

HRC28~60

Mold life

>300,000 shots

Lead time

45~60days

Mold packing

Standard export wooden case
